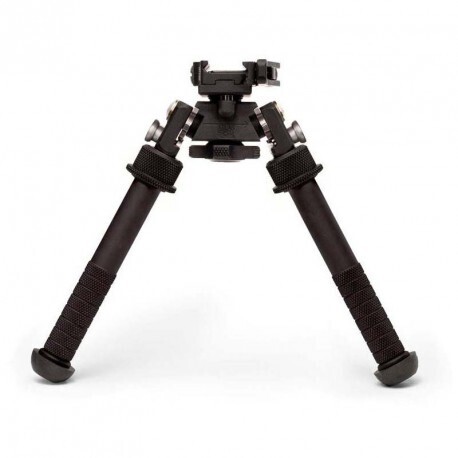

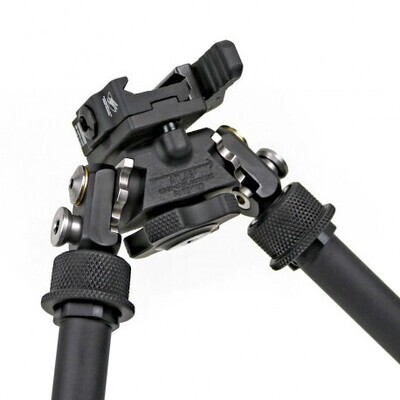

BT46-LW17 PSR Atlas Bipod: Standard height with ADM 170-S Lever

The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.

Selected for the SOCOM PSR (Precision Sniper Rifle) Weapons System. NSN 1005-01-663-0038

• Height Range: 5.2 - 9.6" (6.8” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.5" diameter
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 13.61 ounces approx.
• Footprint: 8–11"
